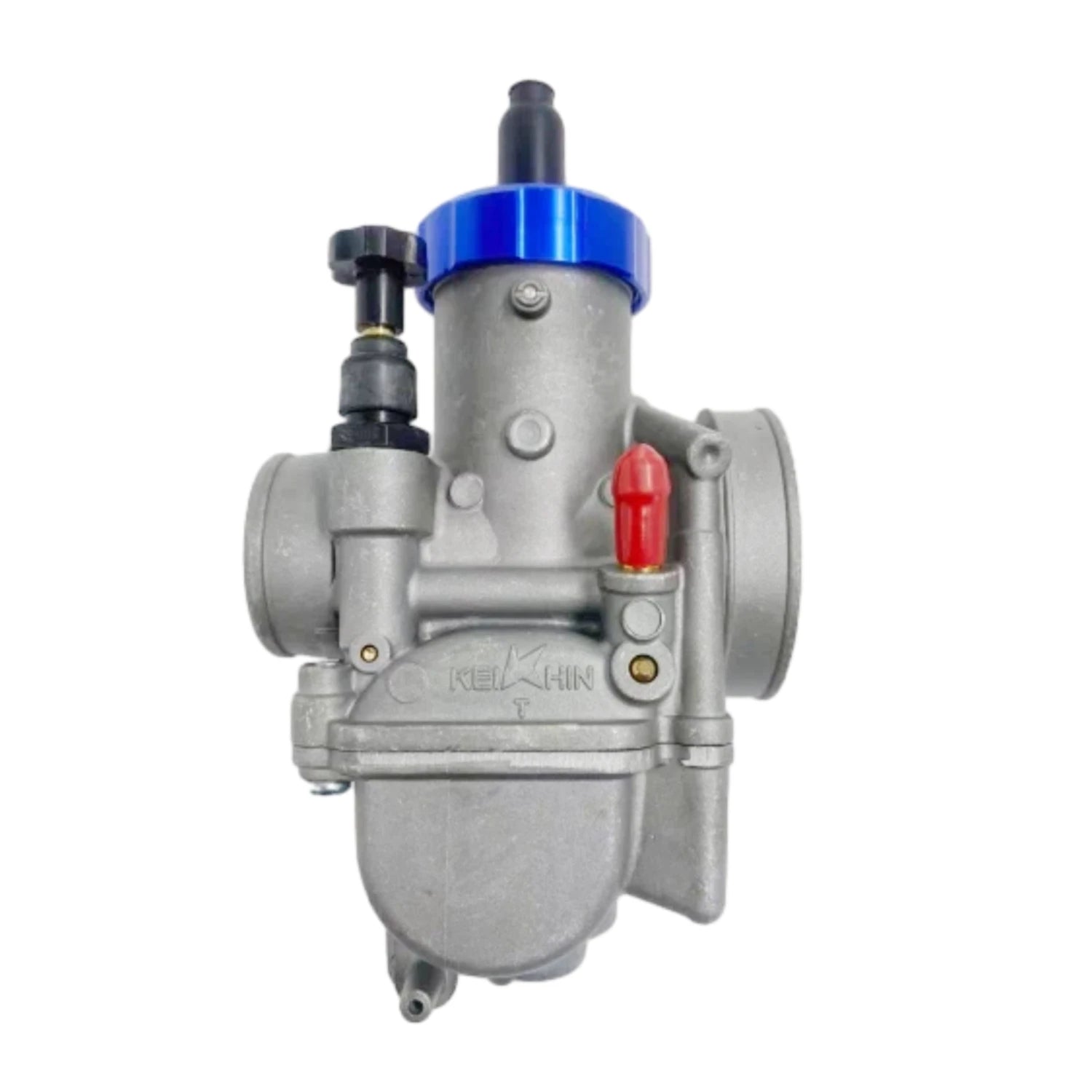

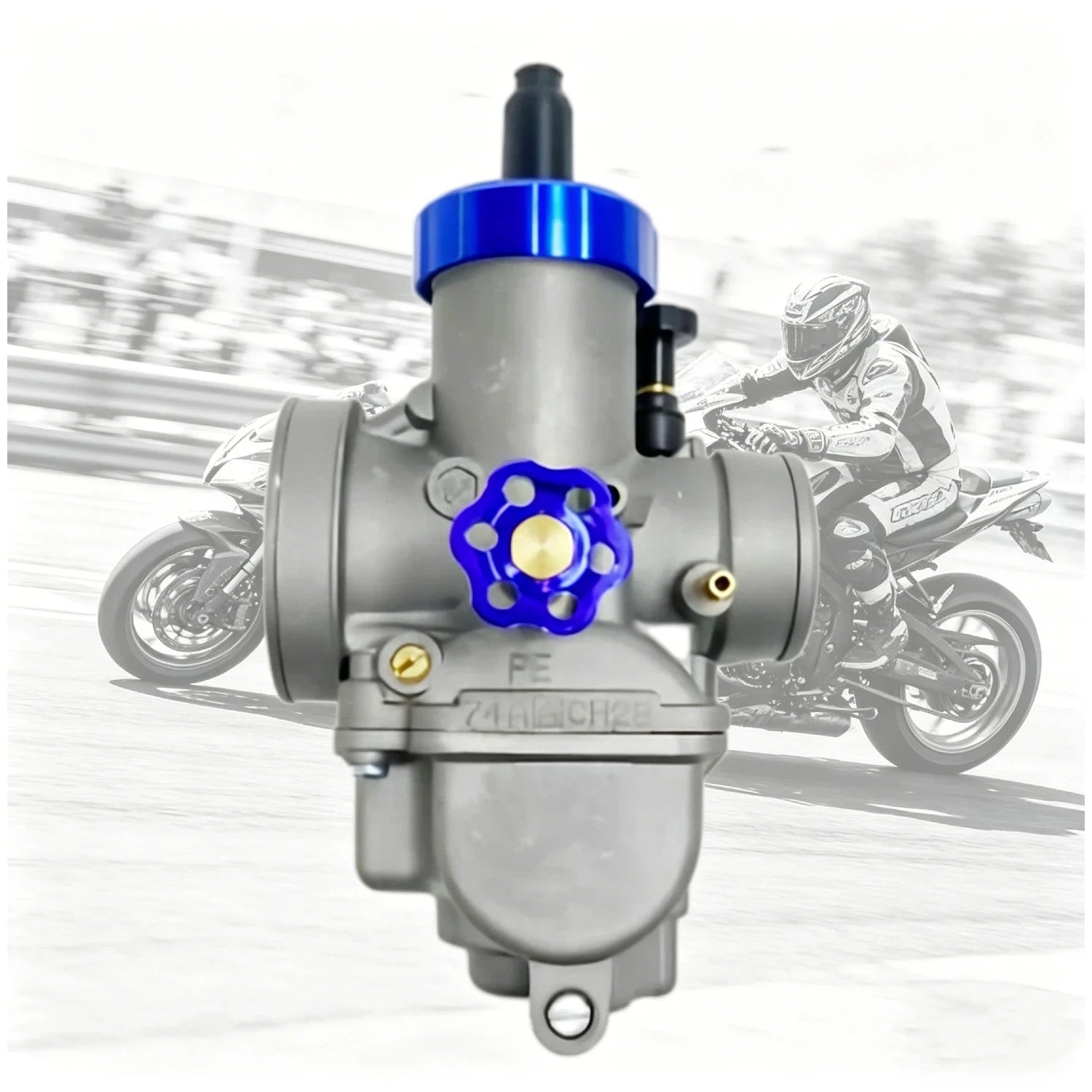

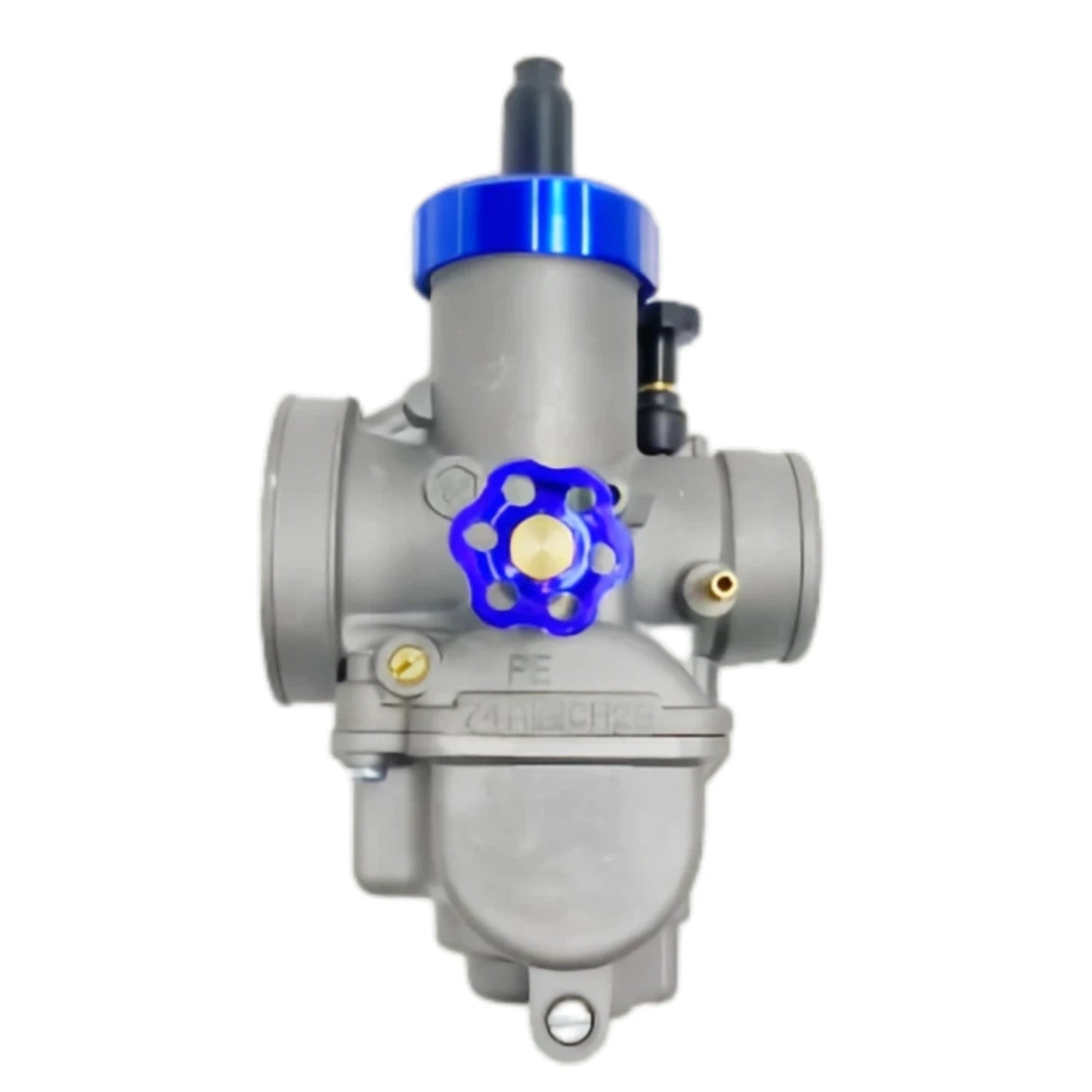

PE28 28mm Carburetor Honda CRF XR 190cc - Keihin PE28 Blue
$80.00

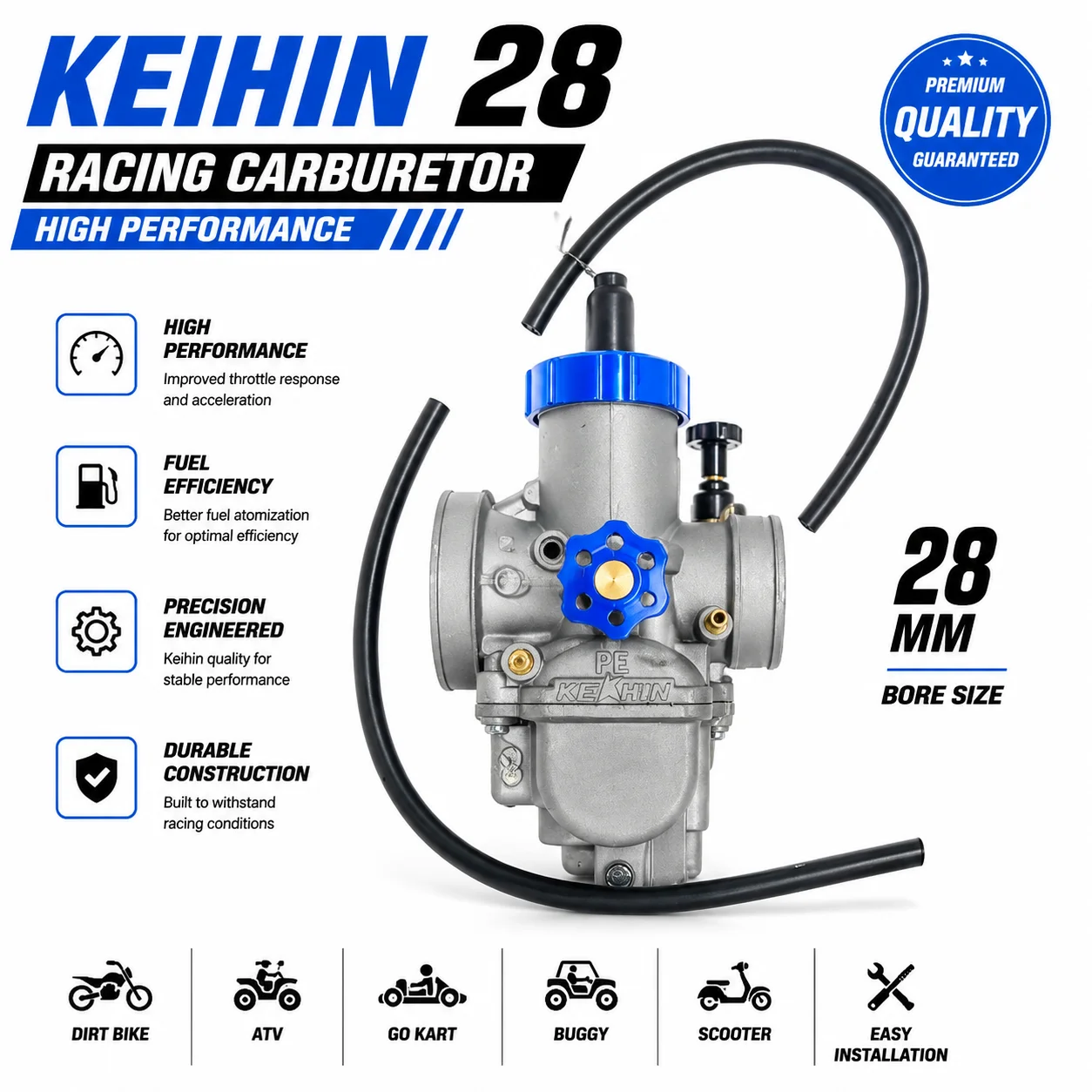

PE28 28mm Carburetor Honda CRF XR 190cc
PE28-style 28mm slide-type high-performance carburetor for Honda CRF/XR, Zongshen, YX, and GY6 engines from 125cc to 190cc – Krovor. Aluminium alloy body with 28mm bore, 22mm venturi, #125 main jet, and 9.5cc float chamber. Compatible with 2-stroke and 4-stroke 125–250cc engines. Blue. Approx. 0.35kg. $80.
⚠️ Important Notice – Verify Compatibility and Tuning Requirements Before Ordering
- This is a performance aftermarket carburetor. Verify that the PE28 28mm bore is compatible with your engine and airbox/intake setup before ordering.
- Jet tuning (main jet, pilot jet, needle) may be required after installation to match your specific engine, exhaust, and air filter configuration.
- Ships from China Mainland. Import duties and taxes are not included and may be charged depending on destination country.
Key Features
- 28mm Bore – 30%+ Increased Airflow vs Stock: Large 28mm bore with round slide design increases intake airflow by over 30% compared to stock carburetors. Results in superior fuel atomisation, enhanced horsepower and torque at high RPMs, and improved top speed and acceleration on 150–190cc engines.
- Direct-Pull Slide – Instant Throttle Response: Direct-pull slide mechanism (pumper-style) eliminates vacuum-induced lag for instantaneous power delivery the moment the throttle is twisted. Offers sensitive response at low RPMs and strong power in the mid-to-high range for precise throttle control off-road and on track.
- Fully Tunable – Main Jets, Pilot Jets, Needle, Float Height: Comprehensive adjustability across all tunable parameters: main jets (#125–#150), pilot jets (#40–#50), jet needles (6.0–7.0), float height, and idle/mixture screws. Allows precise calibration for aftermarket exhausts, air filters, camshafts, and other modifications.
- 9.5cc Float Chamber – Stable Fuel Delivery Under Load: 9.5cc float chamber prevents fuel starvation and lean conditions during tilting or jumping manoeuvres, ensuring reliable performance for both off-road and track use.
- Aluminium Alloy Body – Durable and Wear-Resistant: Aluminium alloy body with precision-engineered slides and valve components. Highly resistant to wear and deformation for long-term stable performance in demanding conditions.
- Transparent Overflow and Drain Tubes – Easy Maintenance: Includes transparent overflow tube and drain tube for convenient maintenance and leak-free operation.
Specifications
- Model: PE28
- Bore Diameter: 28mm (Venturi: 22mm)
- Intake Port: OD 33.5mm / ID 28.5mm
- Main Jet: #125 (tunable: #125–#150)
- Pilot Jet: #40 (tunable: #40–#50)
- Jet Needle: 3.0 (tunable: 6.0–7.0)
- Throttle Slide: 3.0
- Float Chamber: 9.5cc
- Material: Aluminium alloy
- Colour: Blue
- Weight: Approx. 0.35kg
- Certification: CCC (supplier-stated — verify documentation if required)
- Origin: Mainland China
- Condition: 100% Brand New
Compatible Applications
- Off-road motorcycles: KX/CR/XR/ZX 125–190cc
- 160–190cc horizontal Honda-style engines: CRF/XR/ZX series
- Two-stroke models: KX80, KX100, CR85

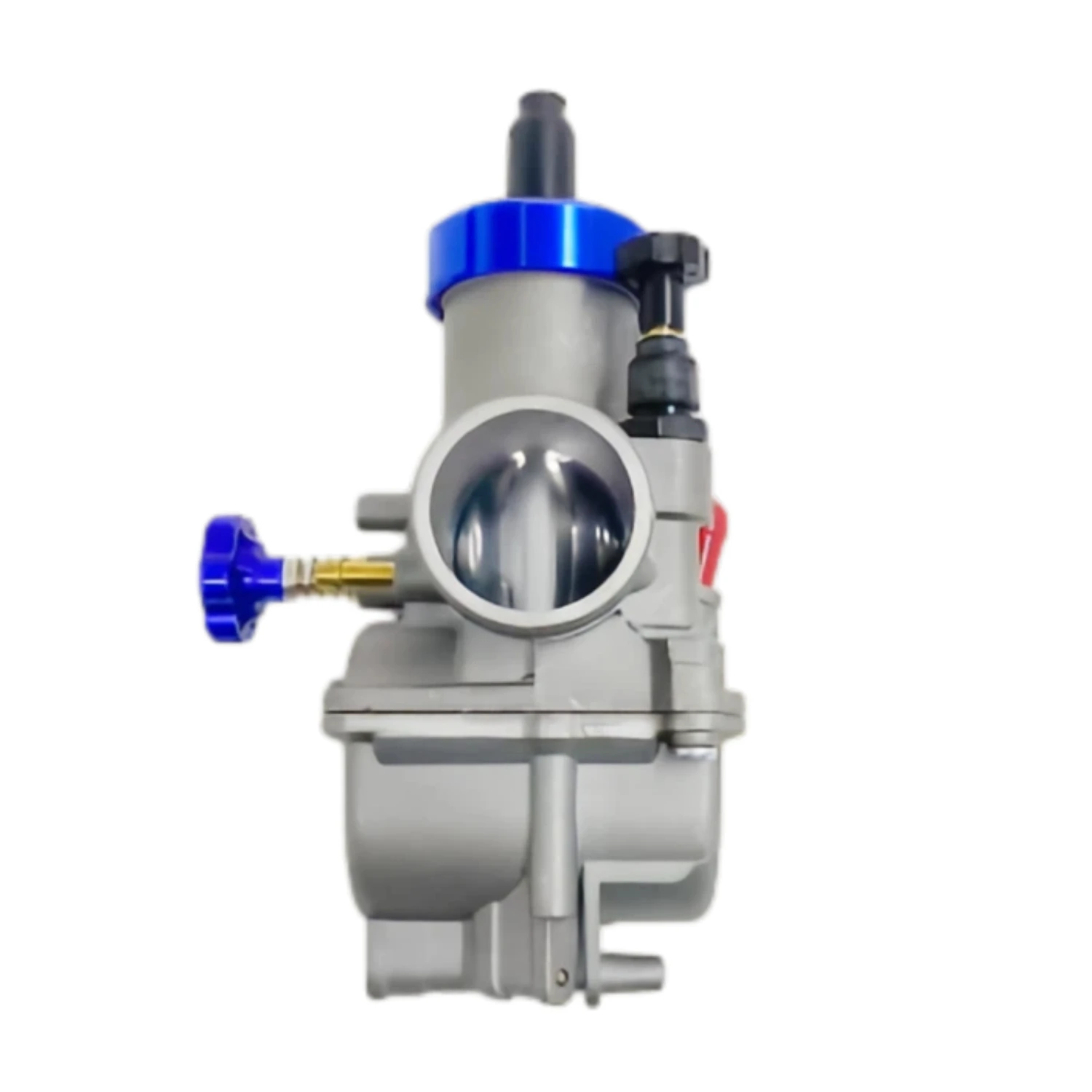

- Scooter/underbone modifications: GY6 125–180cc
- Classic two-stroke restoration: NSR150, KSR110
- General 2-stroke and 4-stroke engines: 125cc–250cc
PE28 28mm bore offers optimal balance between peak power and low-end torque compared to PE24/26 (smaller) and PE30/32 (larger bore). Verify intake port compatibility (OD 33.5mm / ID 28.5mm) with your airbox and engine before ordering.
Tuning Reference
- Main Jet range: #125–#150
- Pilot Jet range: #40–#50
- Jet Needle range: 6.0–7.0
- Tuning recommended after installation to match your exhaust, air filter, and engine specification.
Package Includes

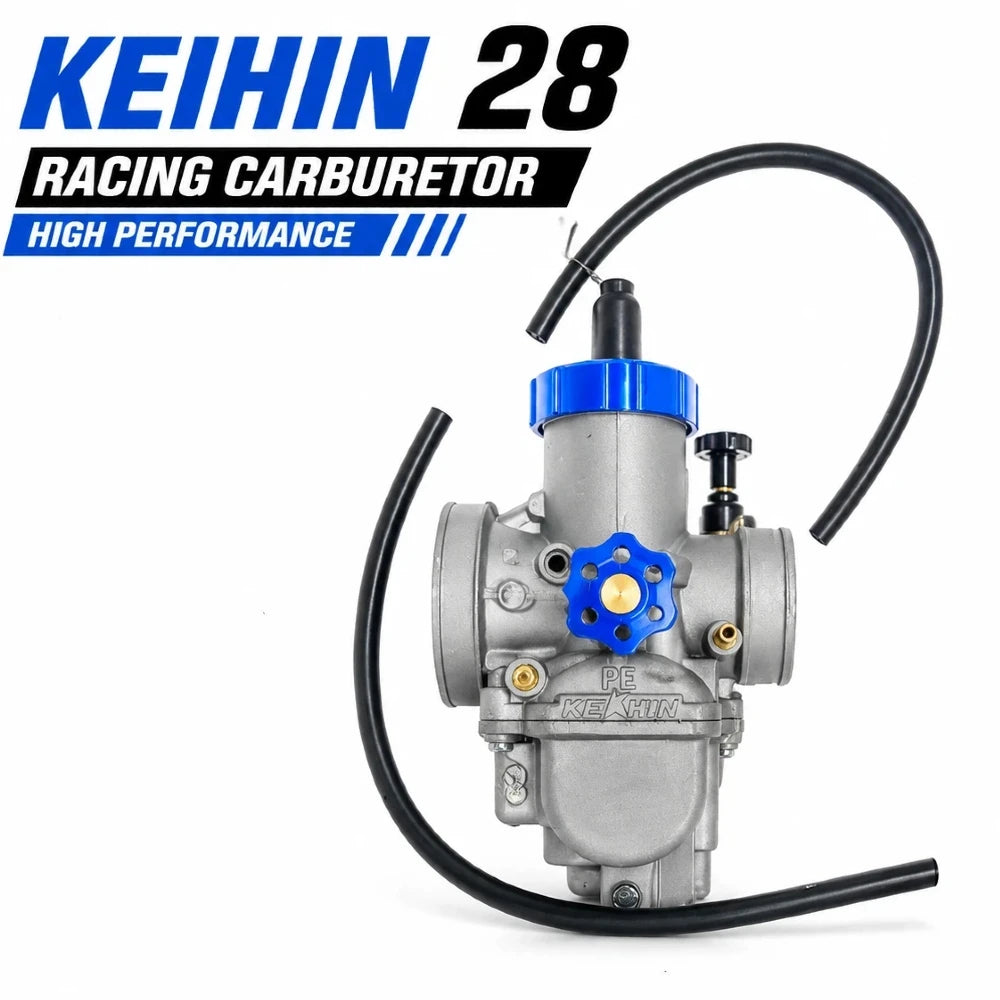

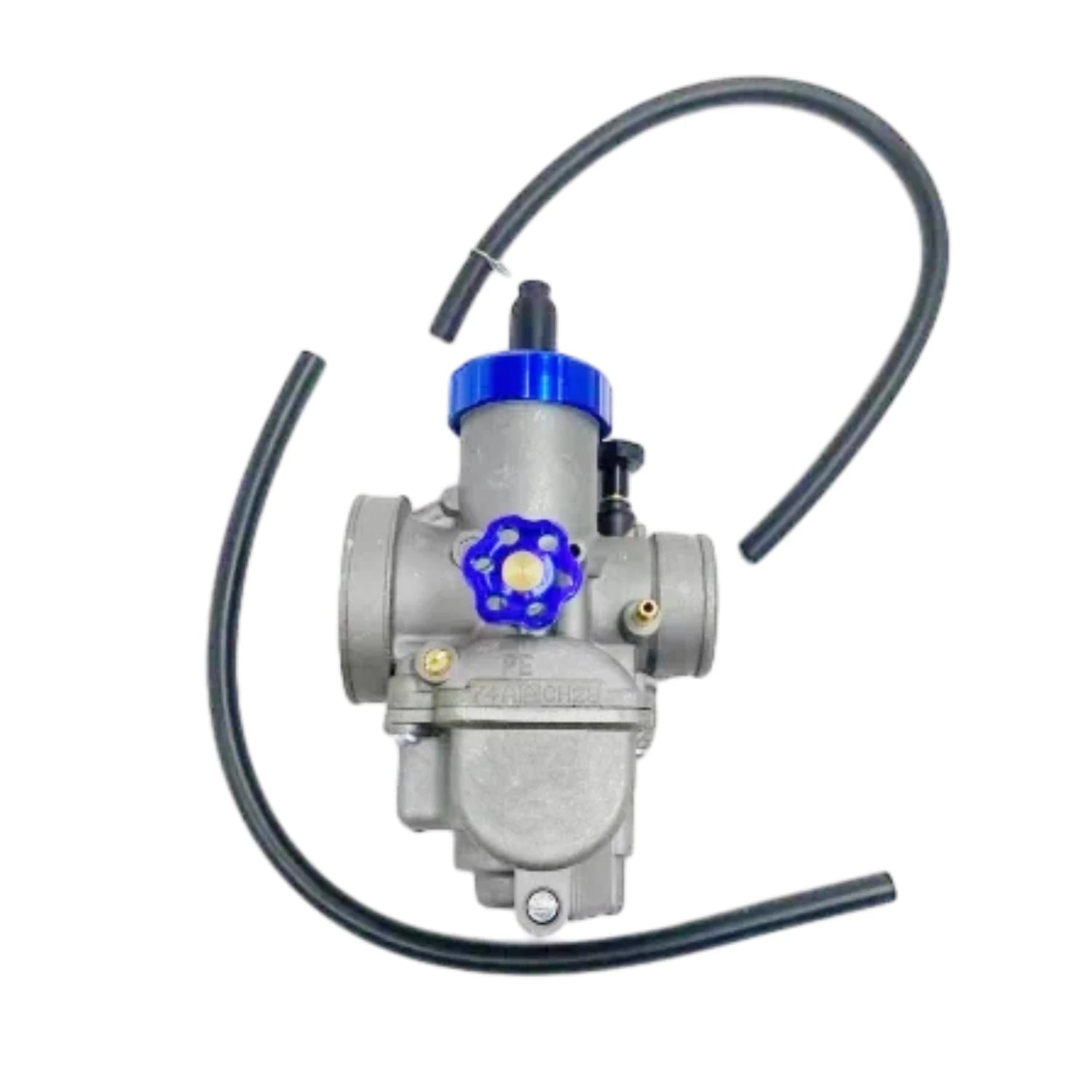

- 1 × PE28 28mm carburetor (Blue)
- Transparent overflow tube and drain tube
Important Notes
- Verify intake port dimensions (OD 33.5mm / ID 28.5mm) and bore size (28mm) against your engine and airbox before ordering.
- Jet tuning is required after installation to optimise performance for your specific engine, exhaust, and air filter combination.
- CCC certification is supplier-stated. Request documentation if formal certification is required.
- If you have any questions before purchasing, please contact us.
